1000 SERIES
LUBE MASTER SPRAY SYSTEM
The rugged Biolube spray system is specifically designed for Lubie® products only. Its reliable and cost-effective applicator accurately atomizes the correct formula of lubricant onto wood or metal processing blades and tooling.
1000 Spray System
The rugged Biolube spray system is specifically designed for Lubie® products only. Its reliable and cost-effective applicator accurately atomizes the correct formula of lubricant onto wood or metal processing blades and tooling.
Customers report longer blade and tool life along with reduced downtime. Filer's spend less time cleaning and sharpening blades. Simply install the nozzles, connect your air supply and the spray system is operational. Lube flow is quickly and easily adjusted.
Easily installs on:
• Band sawmills of all sizes, both vertical and horizontal• Thin Kerf Gang Rips and edgers
• Finger jointers, moulders, Scragg mills, package saws and more
Benefits:
- Improved cutting accuracy, increased feed rate and higher production
- Decreased blade/tool overheating
- Longer blade/tool life
- Reduced downtime
- Heavy-duty construction
- Quick, easy installation and service
- Use with any non-flammable, non-hazardous, environmentally-friendly lubricants or coolants
Features:
- New safety relief valve
- Venturi block quick disconnect
- New manifold design with less components.
- Serialization for easy asset and warranty tracking
- All pneumatic (no electric required)
- Large 5 gallon reservoir
- 2” safety cap fill port
- Double SST mesh lube filer
- 100% satisfaction guarantee
Configurations:
- Lubie 1000-8 (eight-nozzle)
- Lubie 1000-6 (six-nozzle)
- Lubie 1000-4 (four-nozzle)
- Lubie 1000-2 (two-nozzle)
SPECIFICATIONS

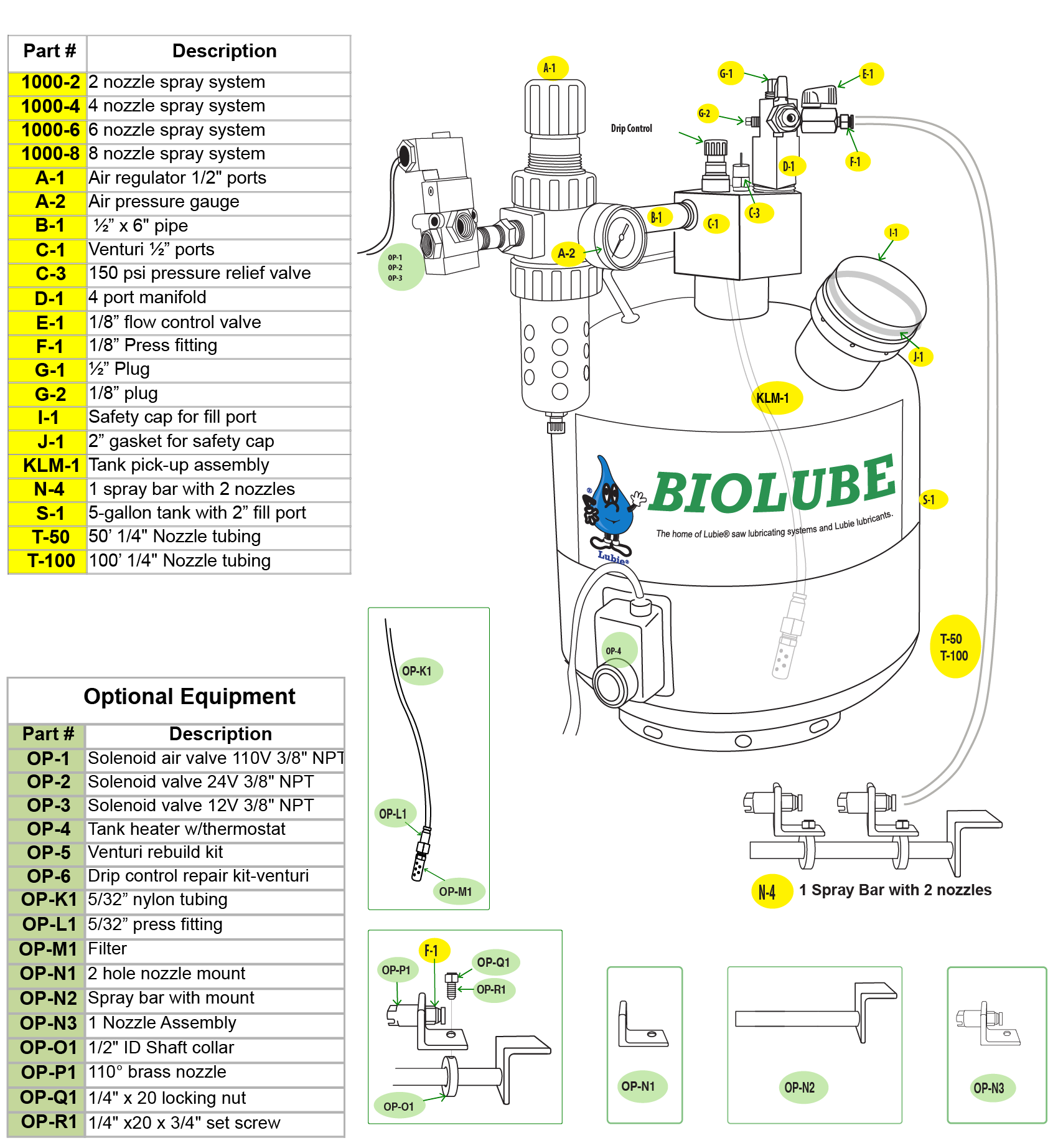

PARTS LIST - 1000 Series
| PART NUMBER | DESCRIPTION |
|---|---|
| 1000-2 | 2-nozzle spray system |
| 1000-4 | 4-nozzle spray system |
| 1000-6 | 6-nozzle spray system |
| 1000-8 | 8-nozzle spray system |
| A-1 | Air regulator 1/2" ports |
| A-2 | Air pressure guage |
| B-1 | 1/2" x 6" pipe |
| C-1 | Venturi 1/2" ports |
| C-3 | 150 psi pressure relief valve |
| D-1 | 4 port manifold |
| E-1 | 1/8" flow control valve |
| F-1 | 1/8" press fitting |
| G-1 | 1/2" plug |
| G-2 | 1/8" plug |
| I-1 | Safety cap for fill port |
| J-1 | 2" gasket for safety cap |
| KLM-1 | Tank pick-up assembly |
| N-4 | 1 spray bar with 2 nozzles |
| S-1 | 5-gallon tank with 2" fill port |
| T-50 | 50' 1/4" nozzle tubing |
| T-100 | 100' 1/4" nozzle tubing |
OPTIONAL PARTS LIST - 1000 Series
| PART NUMBER | OPTIONAL EQUIPMENT |
|---|---|
| OP-1 | Solenoid air valve 110V 3/8" NPT |
| OP-2 | Solenoid air valve 24V 3/8" NPT |
| OP-3 | Solenoid air valve 12V 3/8" NPT |
| OP-4 | Tank heater with thermostat |
| OP-5 | Venturi rebuild kit |
| OP-6 | Drip control repair kit-venturi |
| OP-K1 | 5/32" nylon tubing |
| OP-L1 | 5/32" press fitting |
| OP-M1 | Filter |
| OP-N1 | 2-hole nozzle mount |
| OP-N2 | Spray bar with mount |
| OP-N3 | 1 nozzle assembly |
| OP-O1 | 1/2" ID shaft collar |
| OP-P1 | 110" brass nozzle |
| OP-Q1 | 1/4" x 20" locking nut |
| OP-R1 | 1/4" x 20" x 3/4" set screw |
The 900 Series Lubie Spray System is obsolete.
